SIP Mu-214B Milling / Measuring Machine

  • SIP Mu-214B Milling / Measuring Machine
  • SIP Mu-214B Milling / Measuring Machine
  • SIP Mu-214B Milling / Measuring Machine
  • SIP Mu-214B Milling / Measuring Machine
  • SIP Mu-214B Milling / Measuring Machine
  • SIP Mu-214B Milling / Measuring Machine
  • SIP Mu-214B Milling / Measuring Machine
  • SIP Mu-214B Milling / Measuring Machine
  • SIP Mu-214B Milling / Measuring Machine
  • SIP Mu-214B Milling / Measuring Machine

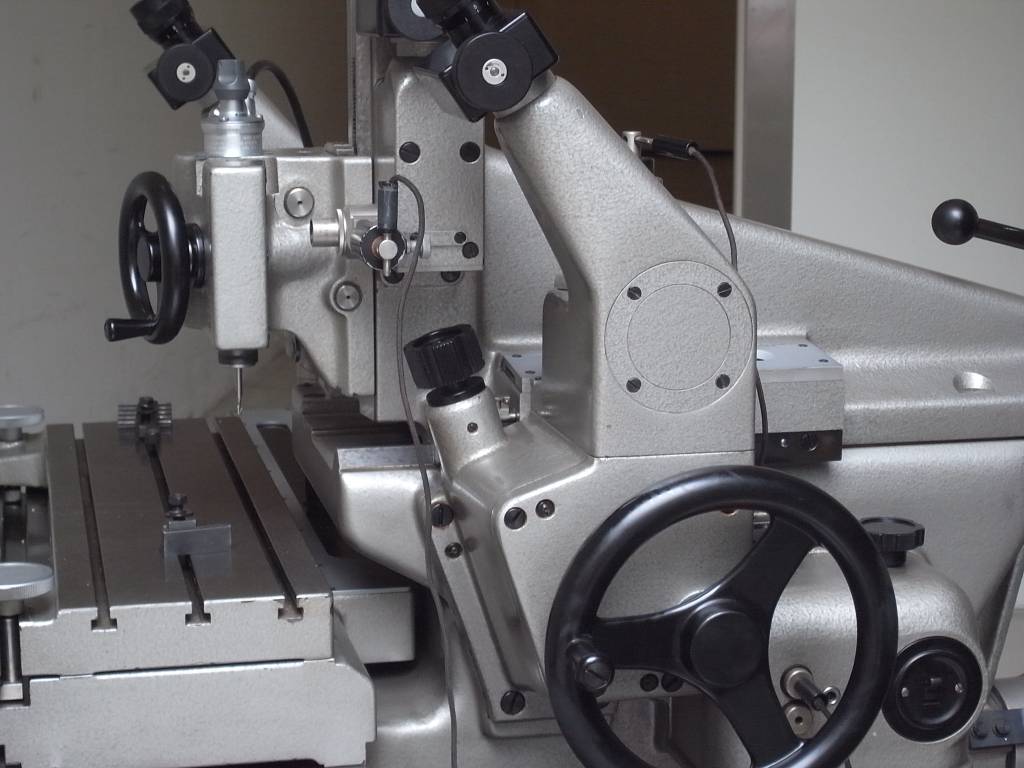

Sold: An used SIP Mu-214B Universal Milling / Measuring Machine with extra microscope for vertical readout

S.I.P.  Société Genevoise D'Instruments de Physique
Geneva Switzerland

Milling / Measuring ways:
Longitudinal 400 mm (with rapid longitudinal and fine setting of longitudinal carriage)
Transversal 100 mm (with rapid traverse and fine setting of transverse carriage)
Vertical 150 mm

Table size: Length 490 mm Width 140 mm
Total size: 890x880x620 mm


Including:
3 Optical microscopes reading glass scales x,y,z with permitting readings of 5µm, actual readings to 1µm are readily estimated
Kavo High Speed Extreme precision Spindle 4010 (SycoTec 4010), max 60.000 rpm, 150W, 30V, 1000Hz and 4mm collet
High frequency Inverter and Power supply for controlling the motor spindle
