Marcel Aubert MA 102 High Precision Jig Borer, Milling Machine

  • Marcel Aubert MA 102  High Precision Jig Borer, Milling Machine
  • Marcel Aubert MA 102  High Precision Jig Borer, Milling Machine
  • Marcel Aubert MA 102  High Precision Jig Borer, Milling Machine
  • Marcel Aubert MA 102  High Precision Jig Borer, Milling Machine
  • Marcel Aubert MA 102  High Precision Jig Borer, Milling Machine
  • Marcel Aubert MA 102  High Precision Jig Borer, Milling Machine
  • Marcel Aubert MA 102  High Precision Jig Borer, Milling Machine
  • Marcel Aubert MA 102  High Precision Jig Borer, Milling Machine
  • Marcel Aubert MA 102  High Precision Jig Borer, Milling Machine
  • Marcel Aubert MA 102  High Precision Jig Borer, Milling Machine

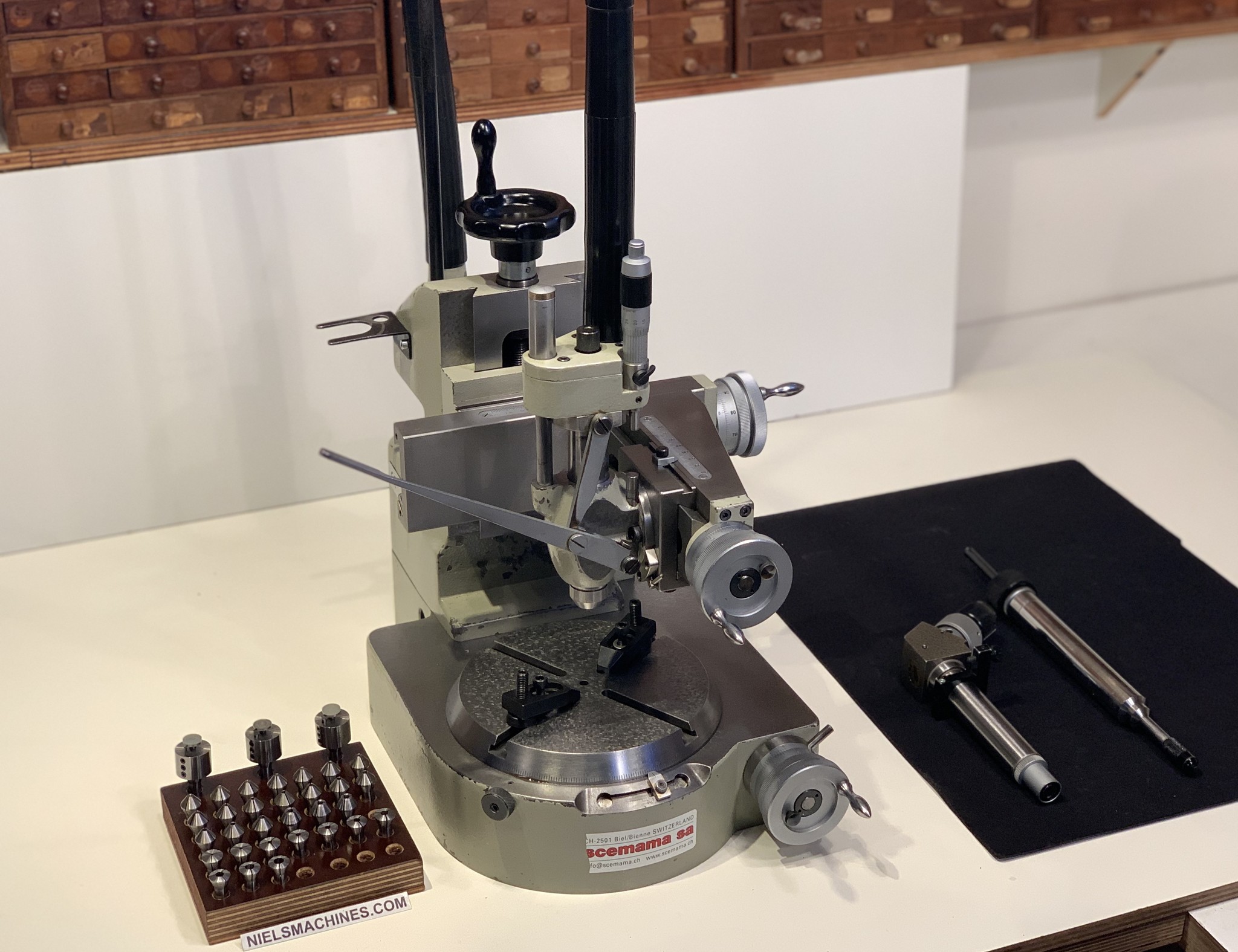

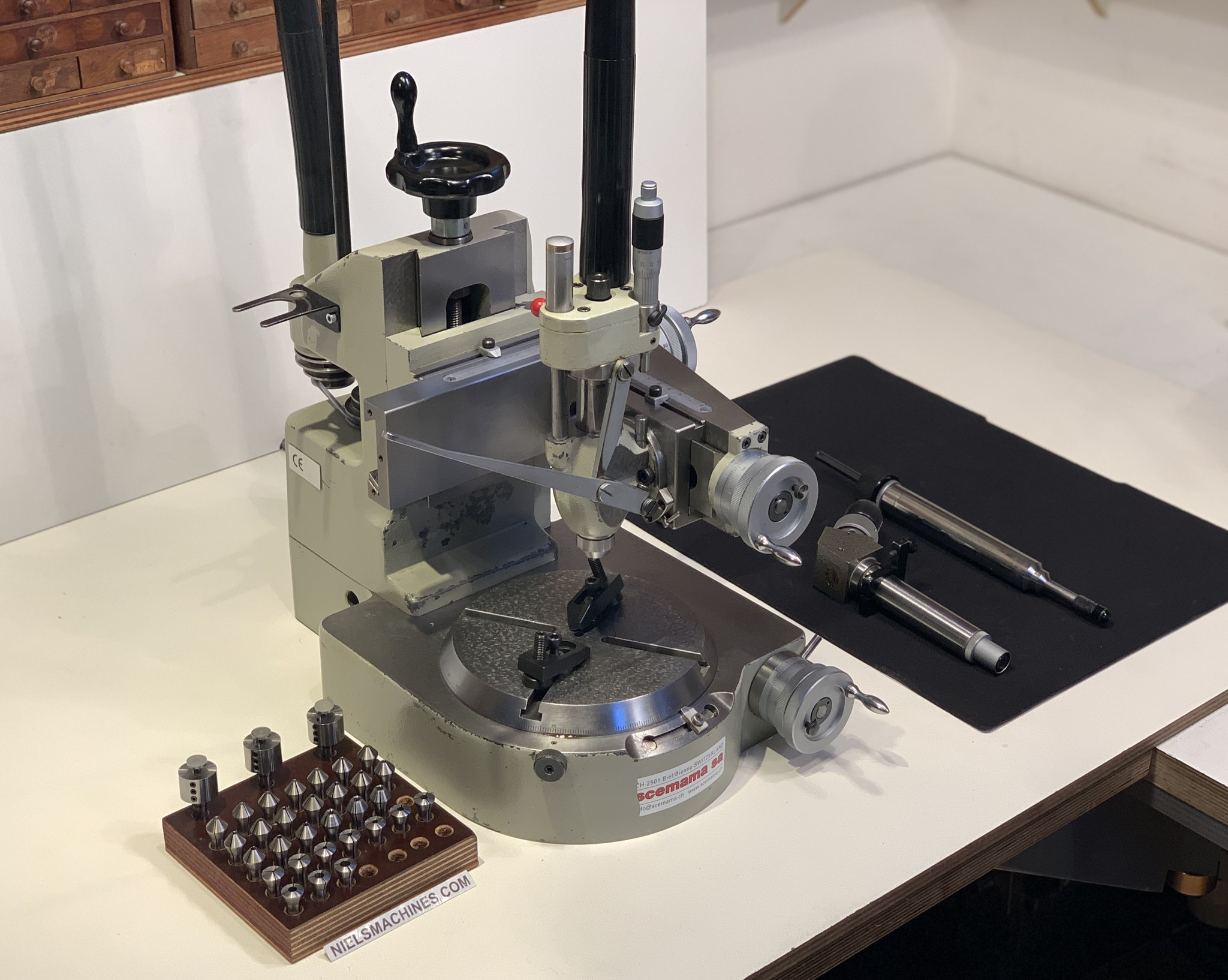

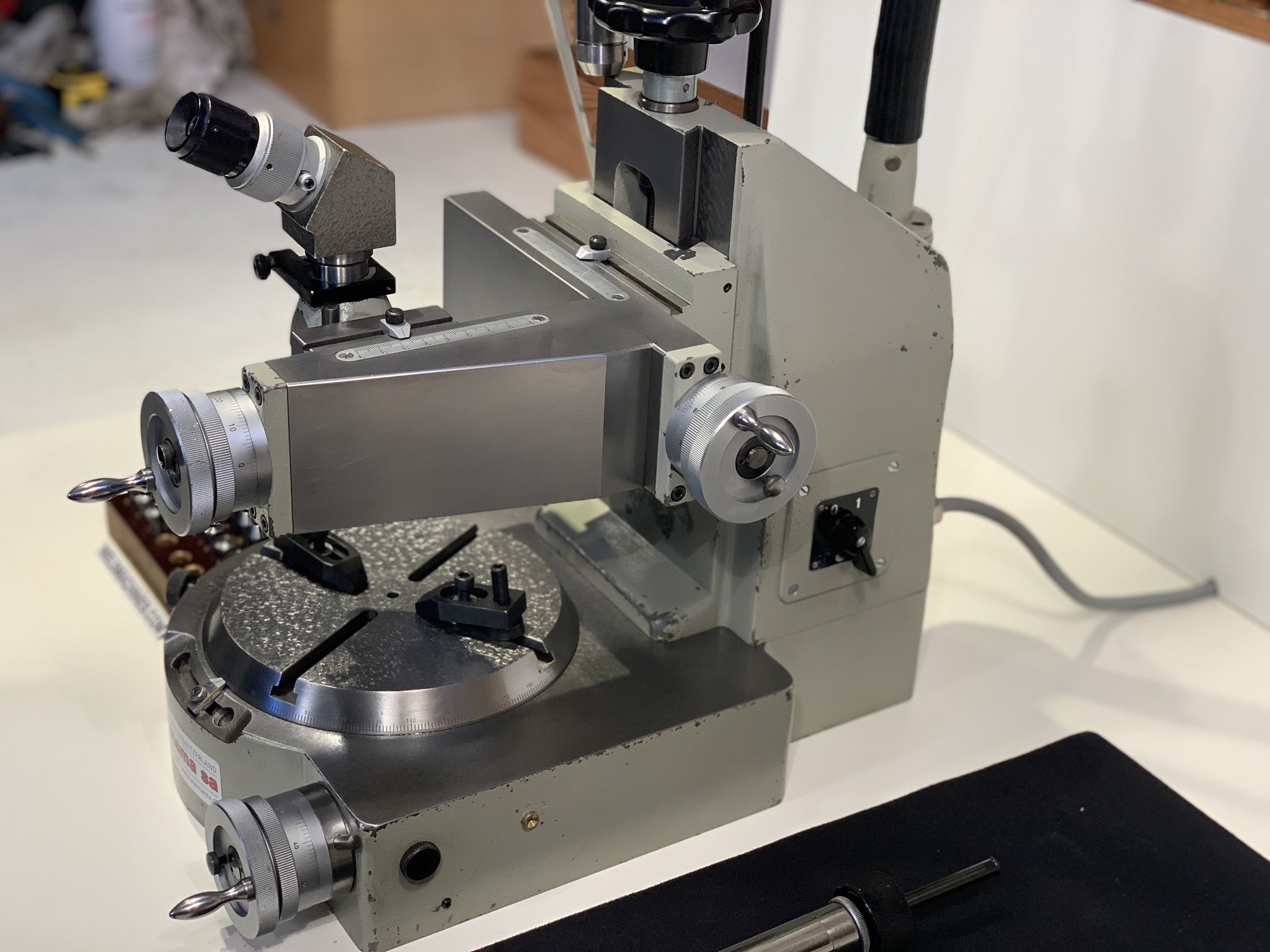

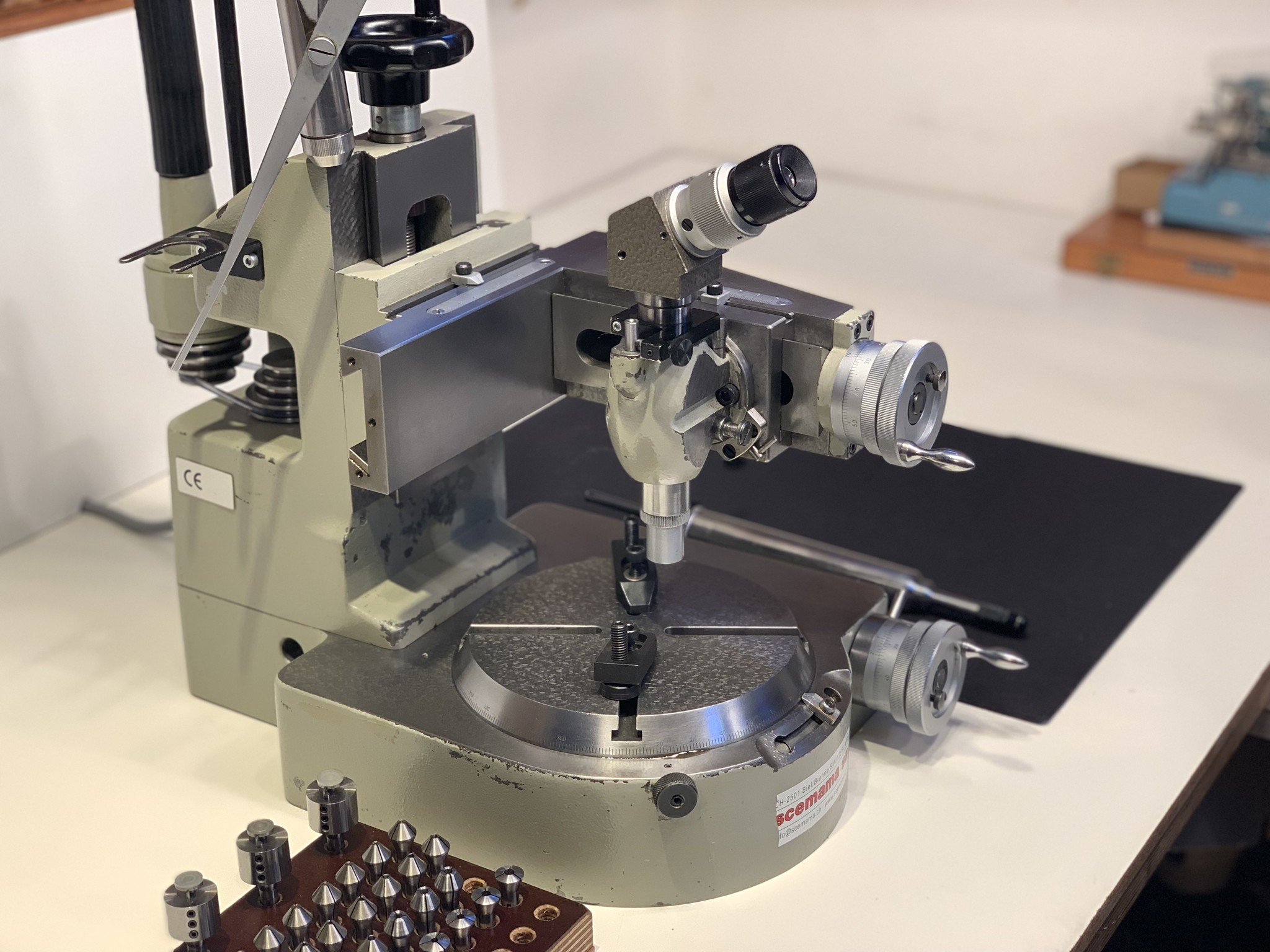

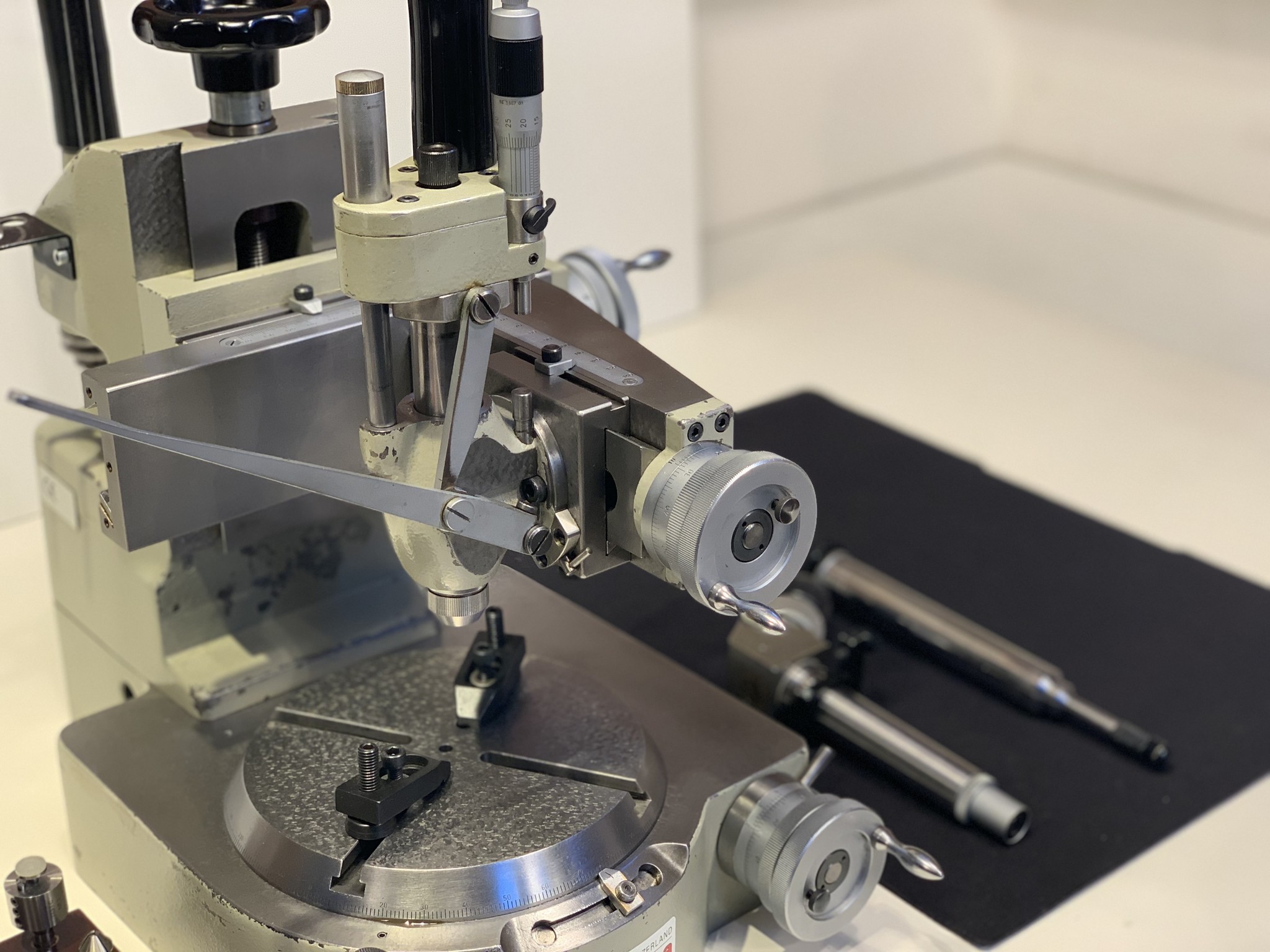

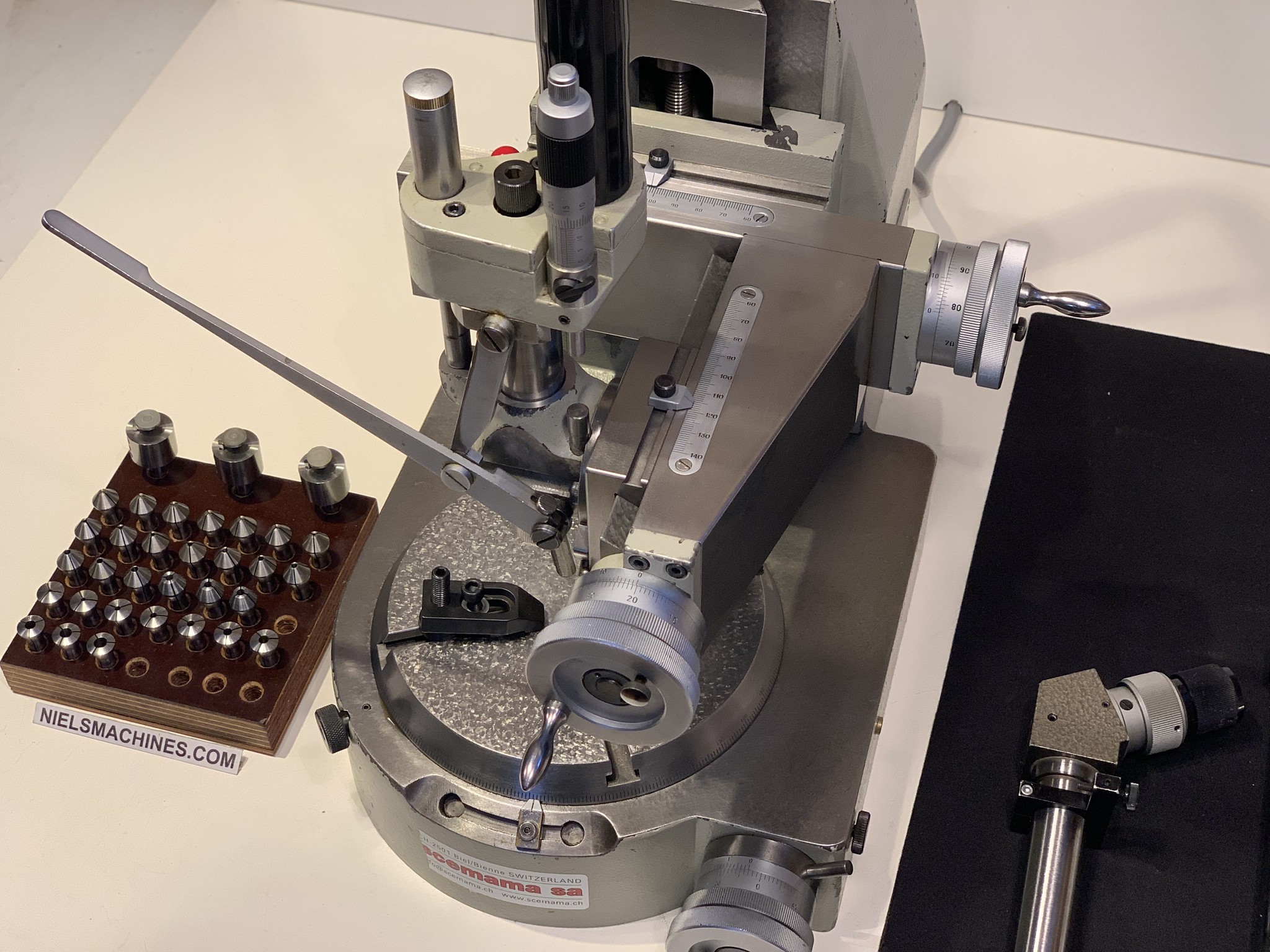

A used Marcel Aubert MA 102 High Precision Jig Borer, Milling Machine

Marcel Aubert SA Bienne Suisse MA 102-10 Jig borer with accessories

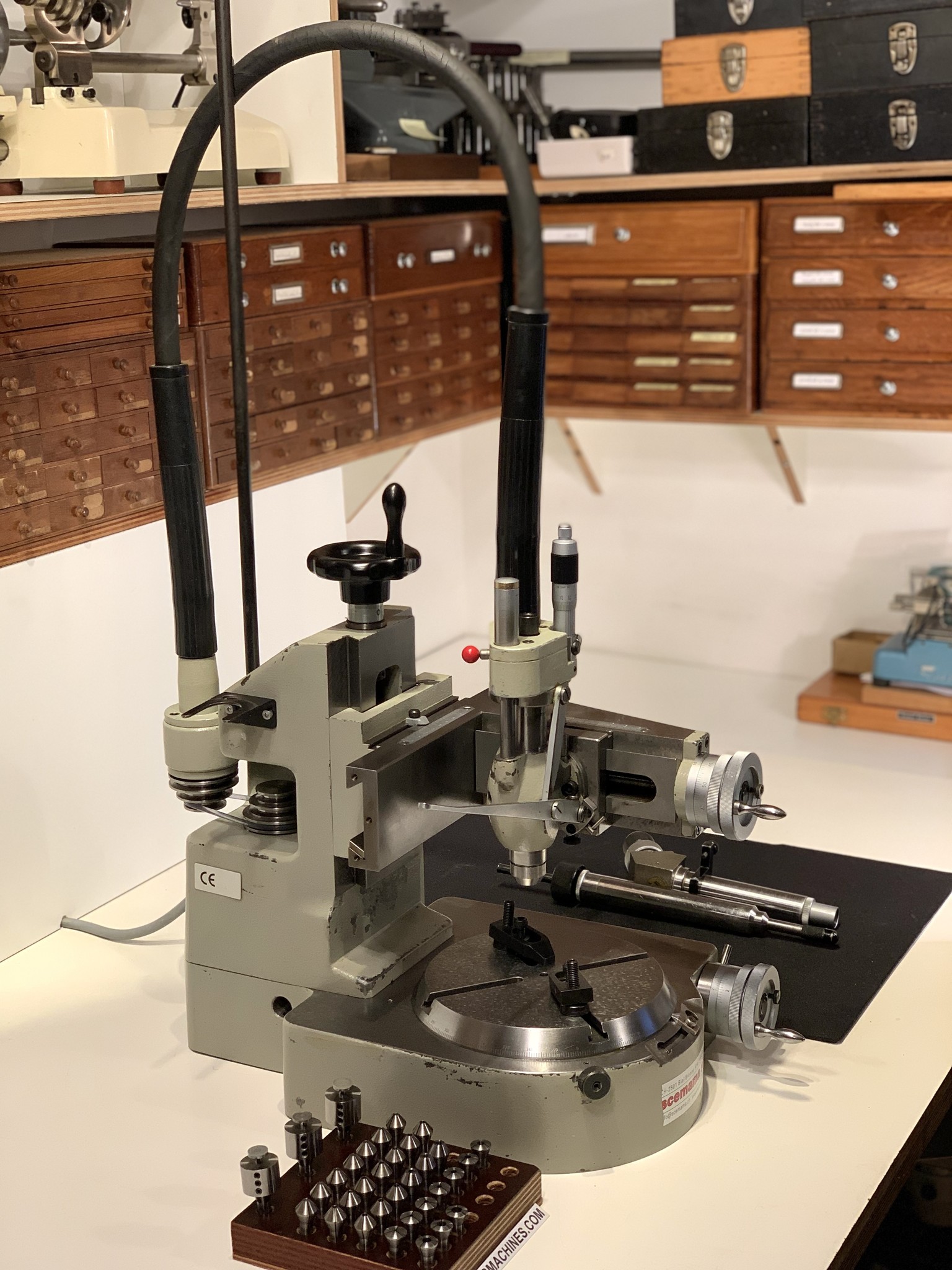

A. Drilling and Milling spindle with flexible shaft and motor 380V

- Takes 8mm Schaublin watchmaker collets with drawbar

- Micrometer endstop

- Spring weight compensation system

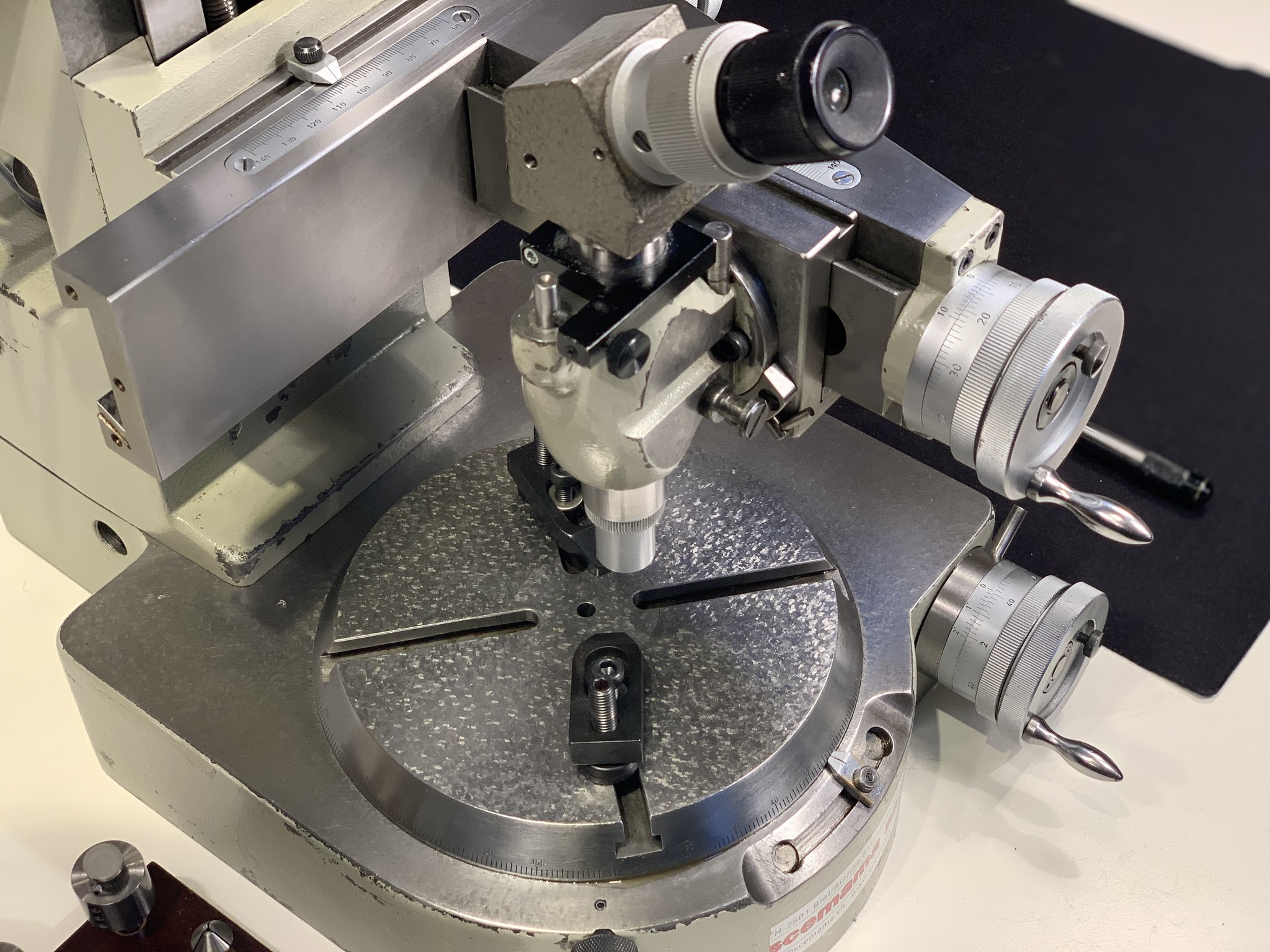

B. Centering microscope

C. Center punch

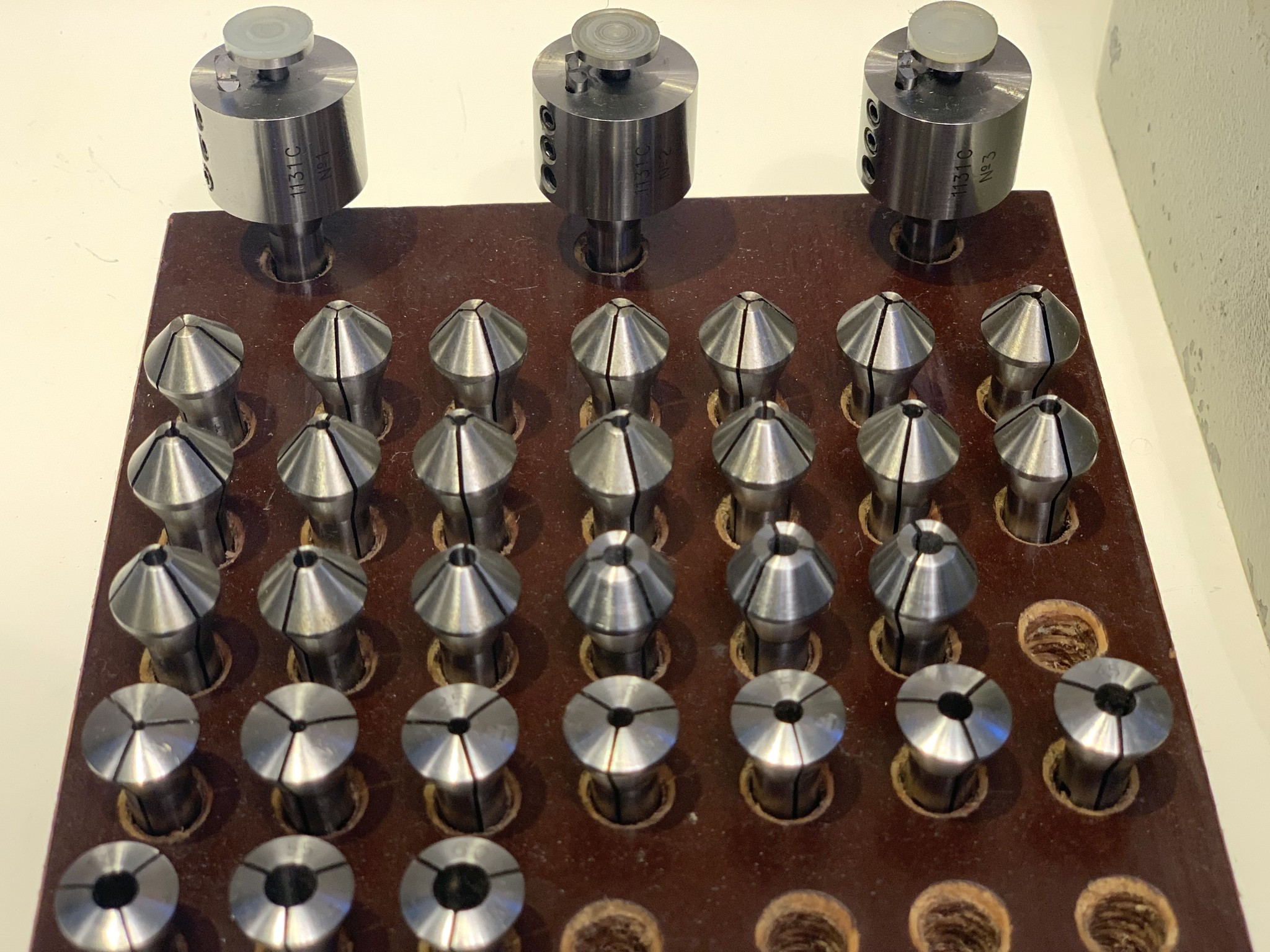

D. Schaublin collet set:

- 10 pieces Schaublin B8 set: 1.5 - 2 - 2.5 - 3 - 3.5 - 4 - 4.5 - 5 - 5.5 - 6mm

- 17 Schaublin B8 Long Nose set: 0.3 - 0.4 - 0.5 - 0.6 - 0.7 - 1.0 - 1.4 - 1.7 - 1.8 - 1.9 - 2.1 - 2.4 - 2.6 - 2.7 - 2.8 - 2.9 - 3.175 - 3.4 - 3.6 and 3.7mm

- 3 pieces Special boring head set 1131C No 1, No 2 and No 3

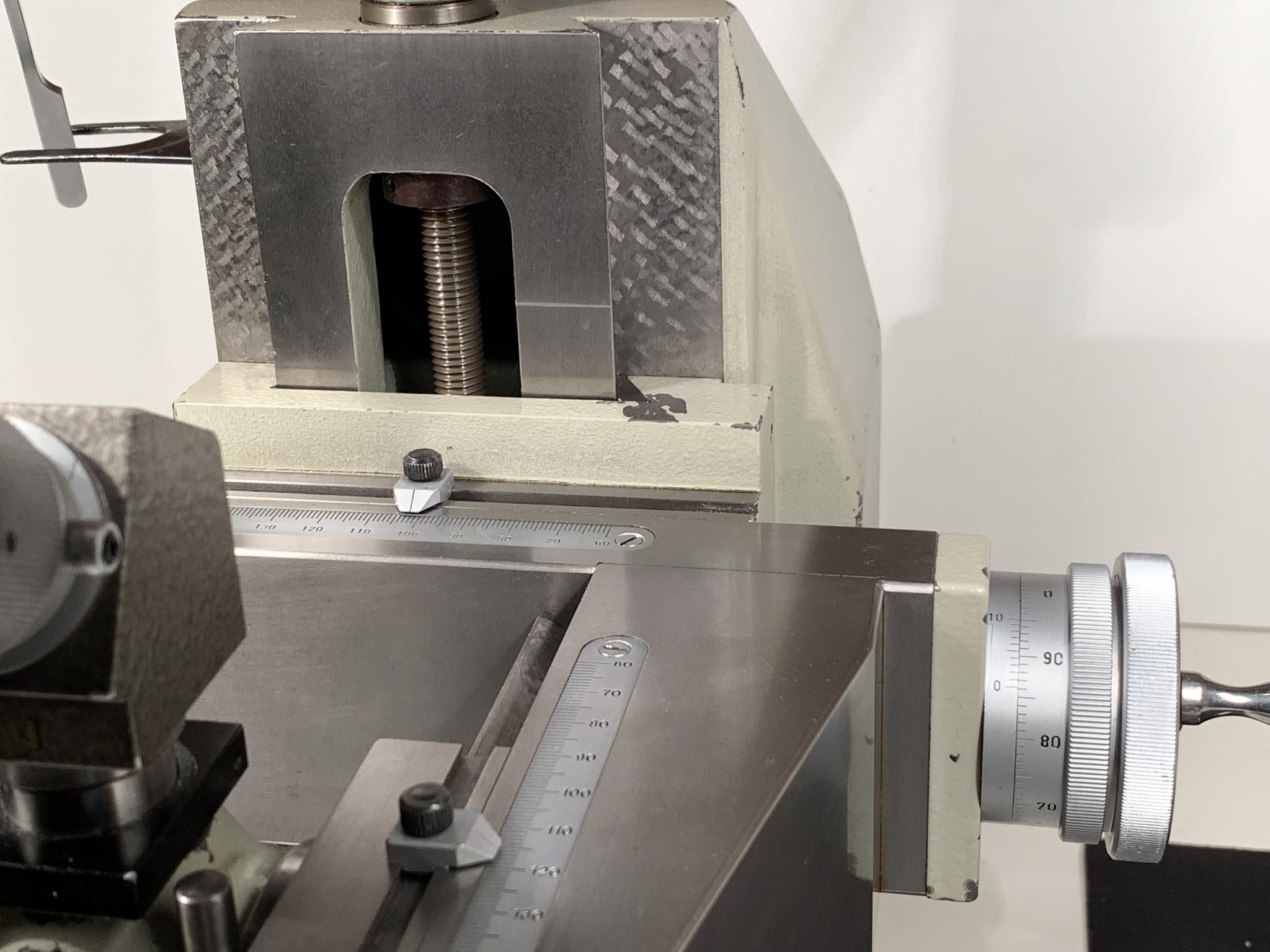

Travel: x, y, z is 80x80x80mm with on the x and y nonius accuracy 0.01mm and vernier accuracy 0.001mm

Dividing table diameter: 180mm with nonius accuracy 2 arc minutes and vernier accuracy 10 arc seconds.

Motor: 380V and 1800/2800/3800 rpm

Measurements: machine 450x400x420mm and baseplate: 250 x 380mm

Weight bare machine without cross table: 45Kg

Total weight incl. accessories is: 58Kg



Price: €18.500,00
