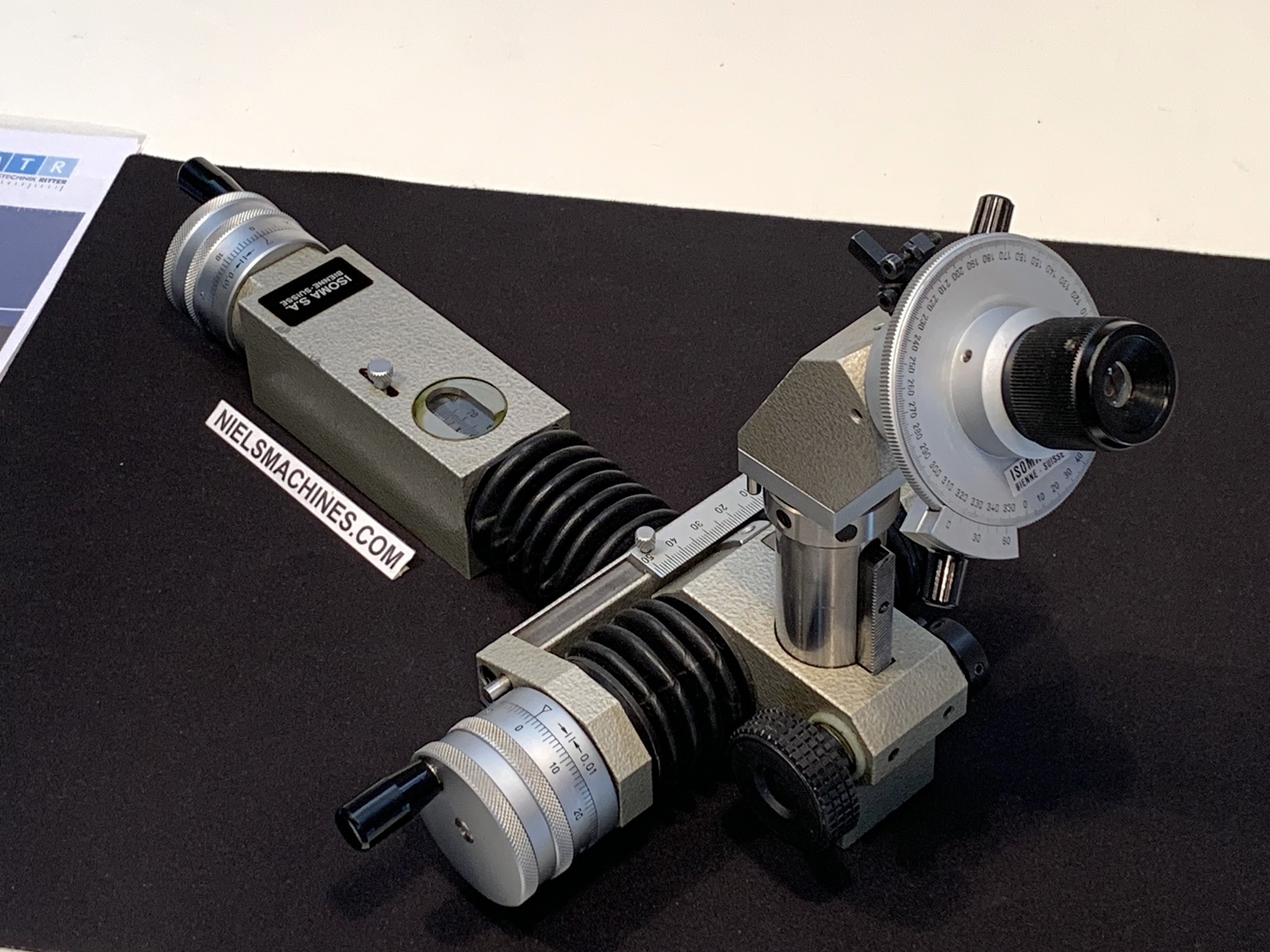

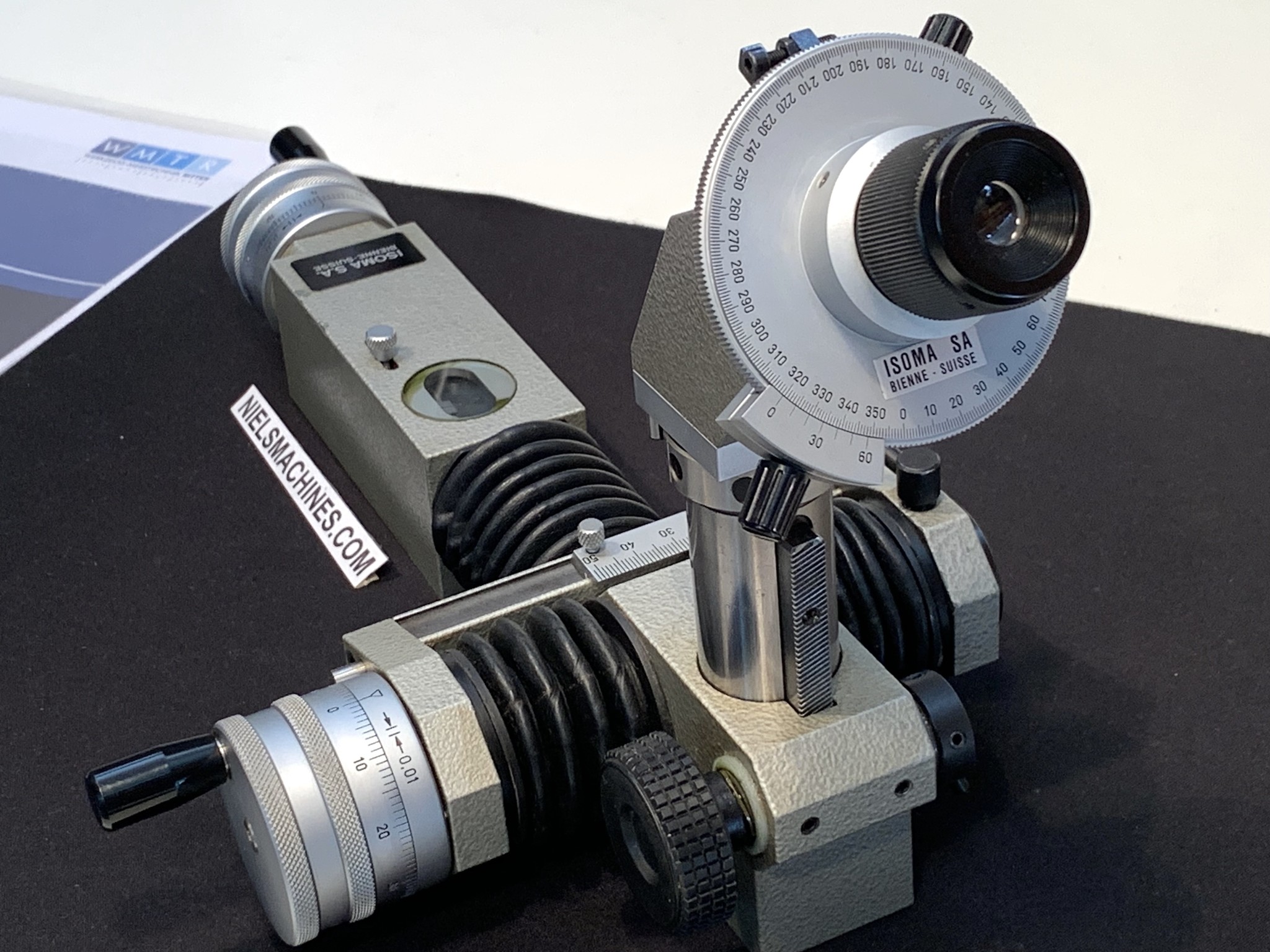

A used Isoma Centering, Angle and Length Measurement Attachment

Microscope

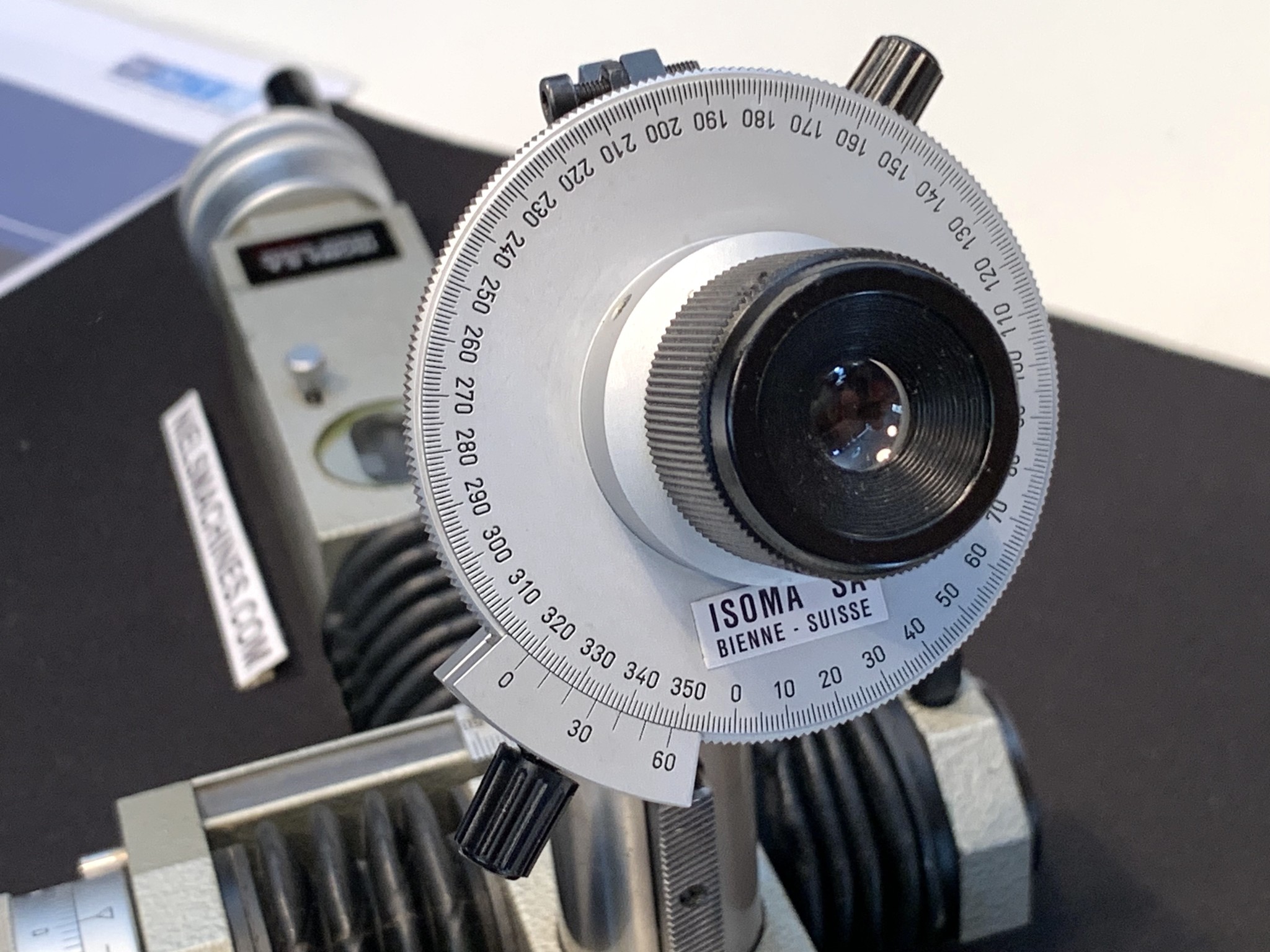

Integrated rotating goniometric head 360°:

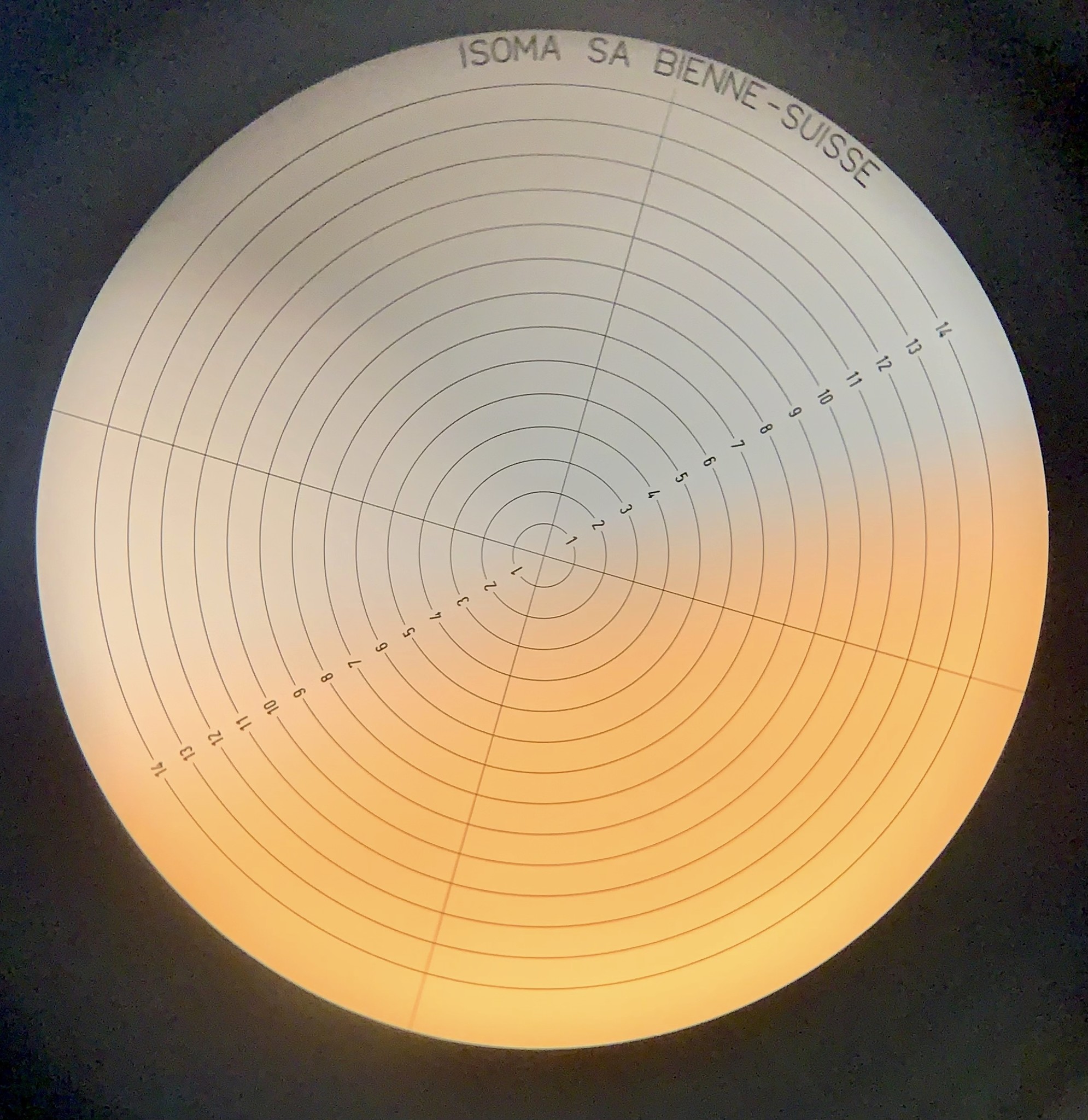

reading on vernier 10' graticule with continuous cross lines and 14 numeralized concentric circles,

Magnification: 10x

Field of view: ø16mm

Object distance: 72mm

Diameter tube: 30mm

Impact-proof and splash-proof

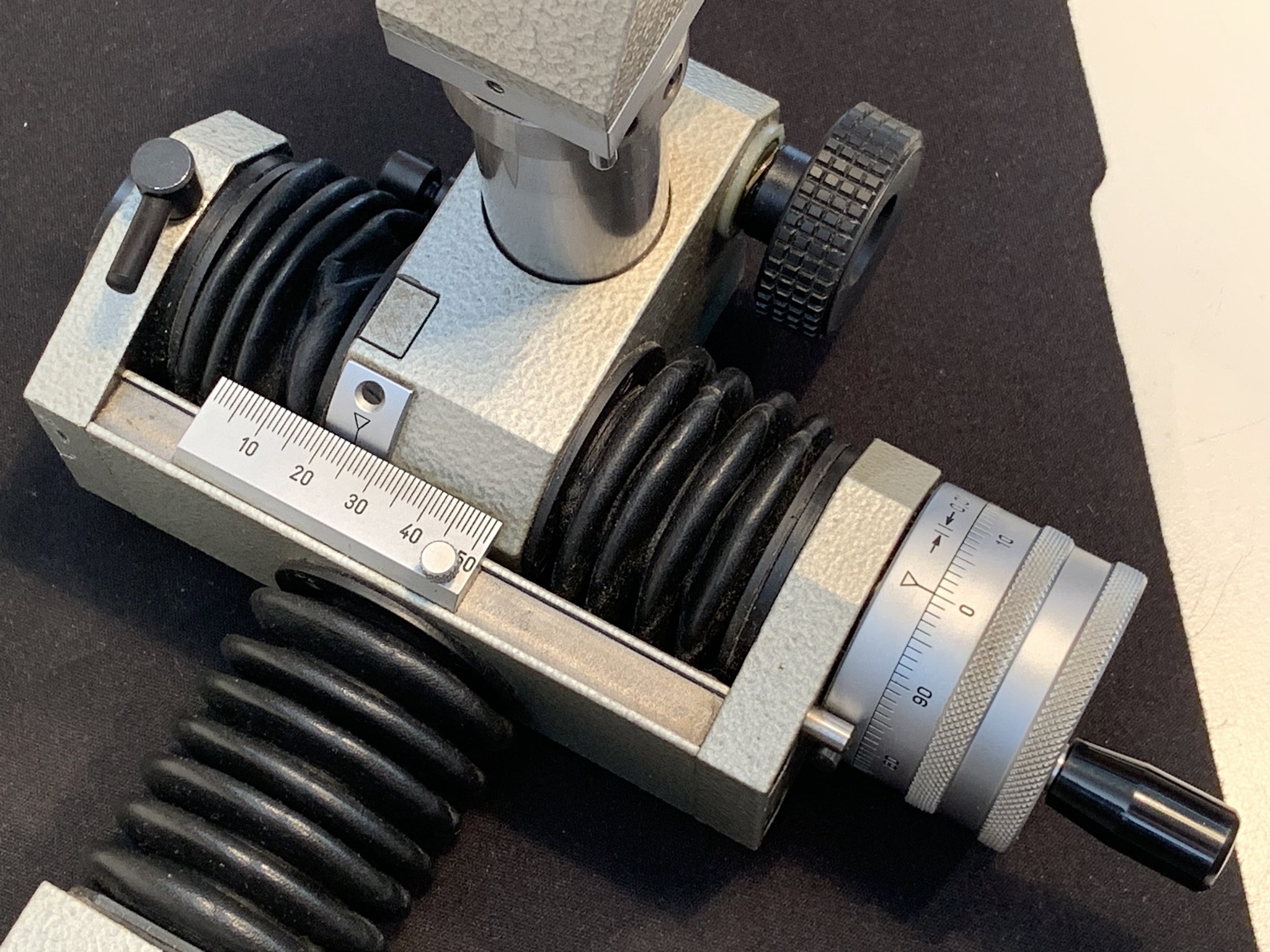

Precision Cross slide

Working range: 100x50mm

Resolution: 0.01mm

The measuring device built on a manual grinder is designed for the fast, non-contact and simple measurement of chipping tools in the clamped state. The advantage here is that the tool can be completely finished in one clamping.

Weight: 6.2Kg
