Friedrich Deckel Grinding Head 2025 Accessories
Used Friedrich Deckel Grinding Head 2025 Accessories

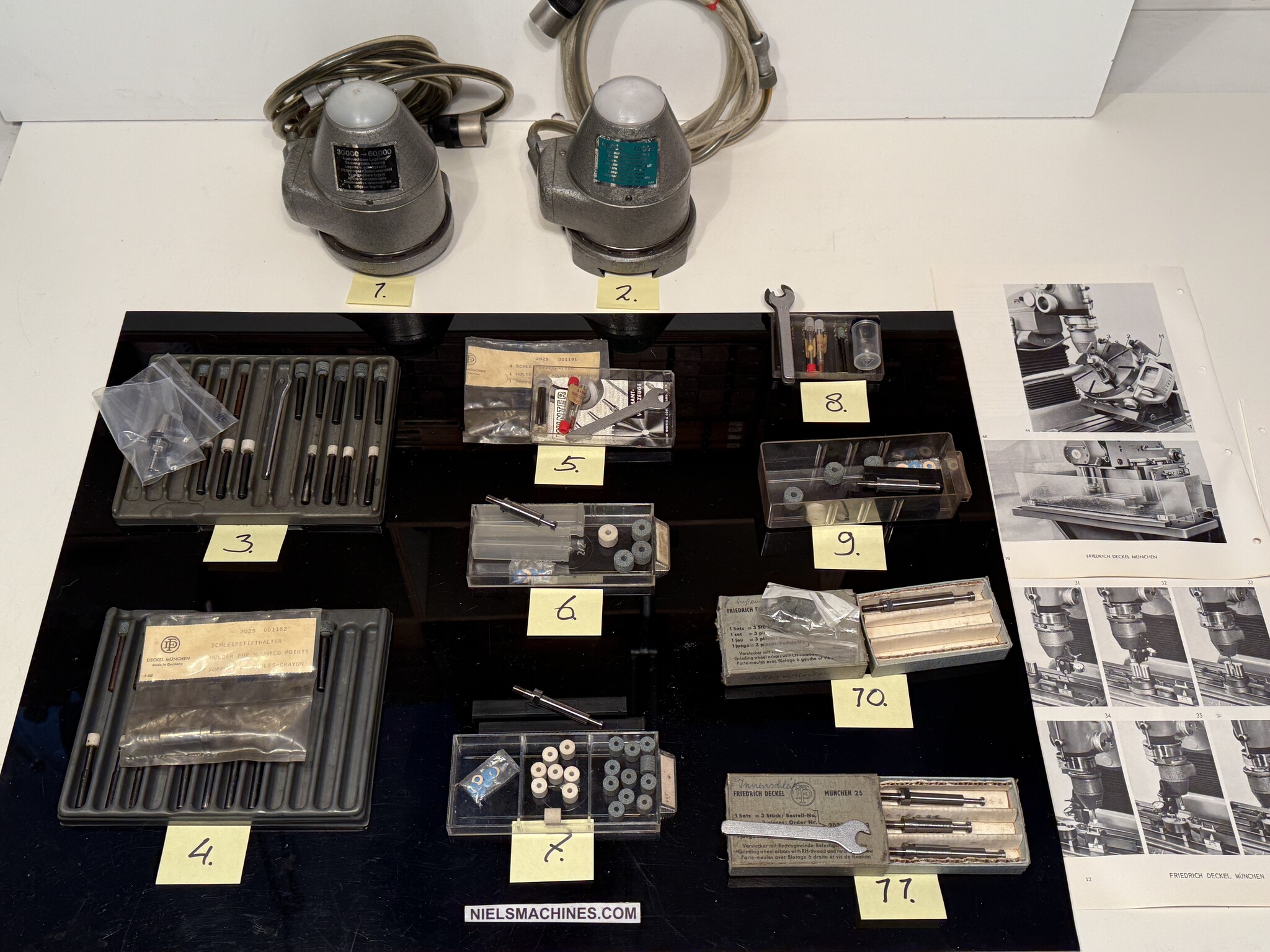

| Deckel number | Dimensions | Grinding | Price | ||

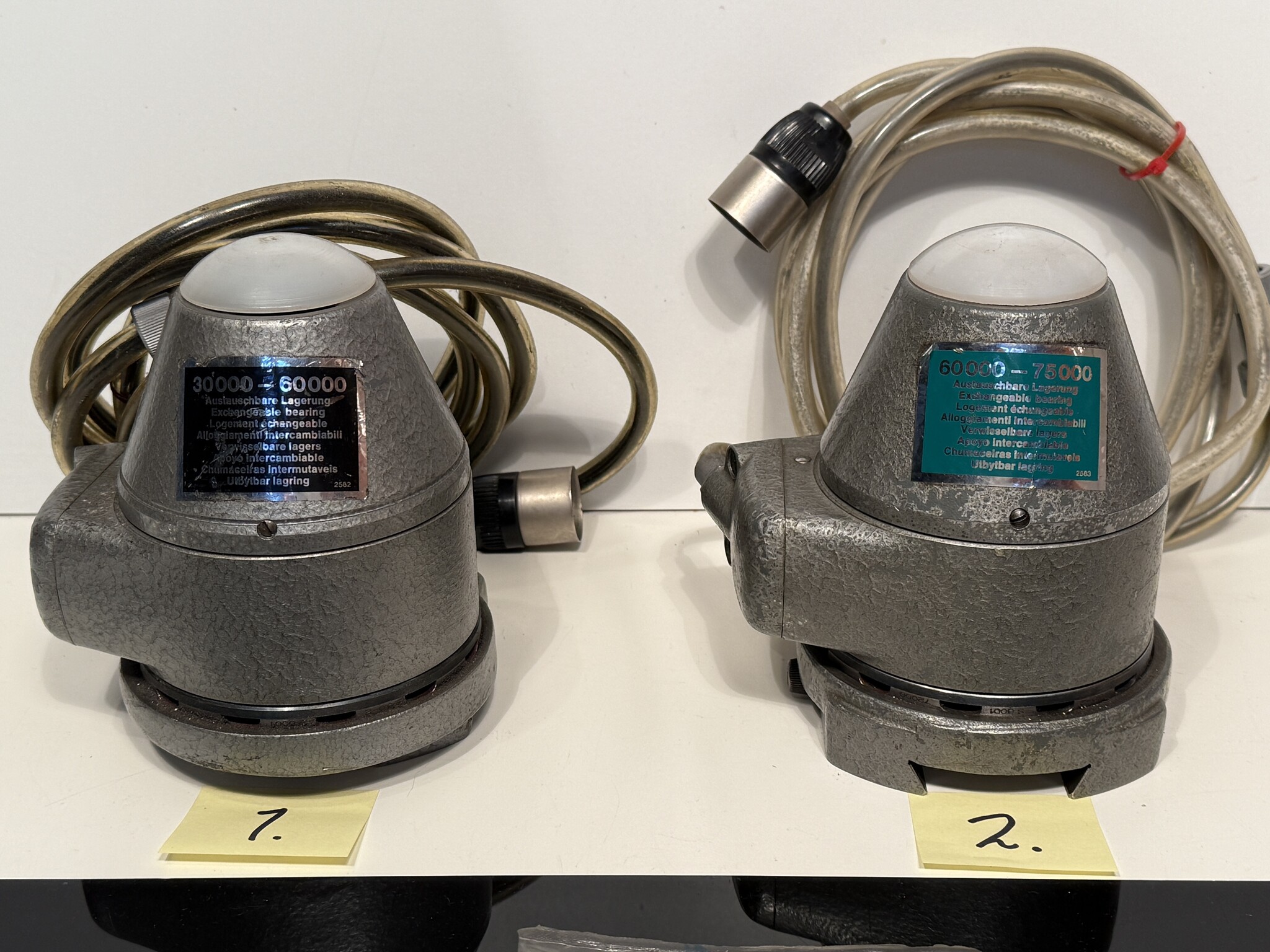

| 1 | Grinding motor 30.000-60.000 | 20 25 0000 52 | Takes M5 holders | outside and inside | €2450 |
| 2 | Grinding motor 60.000-75.000 | 20 25 0000 53 | Takes M5 holders | outside and inside | €2450 |

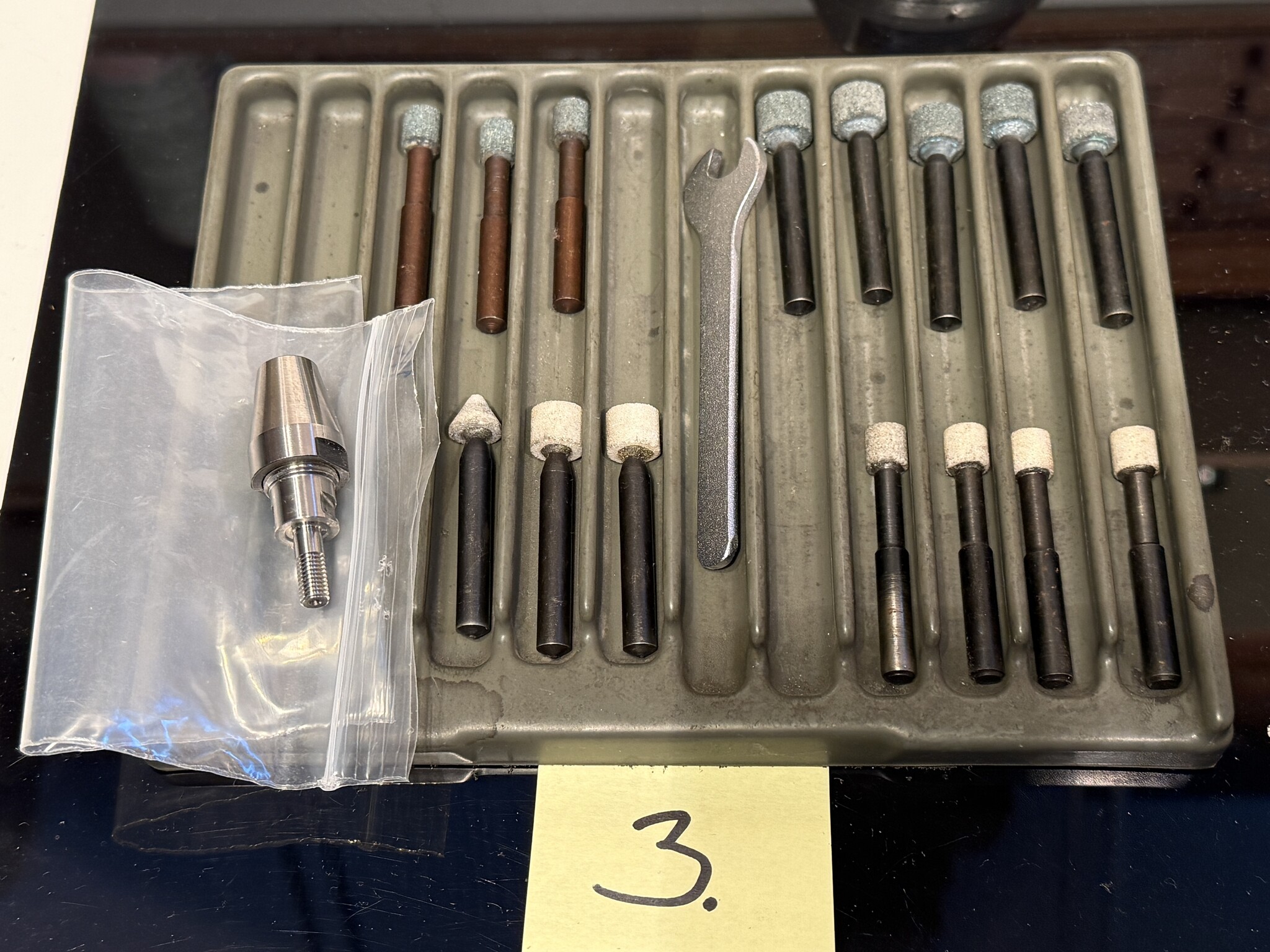

| 3 | Colletholder ø6mm | 20 25 1192 | M5 with collet for ø6 shaft | outside and inside | sold |

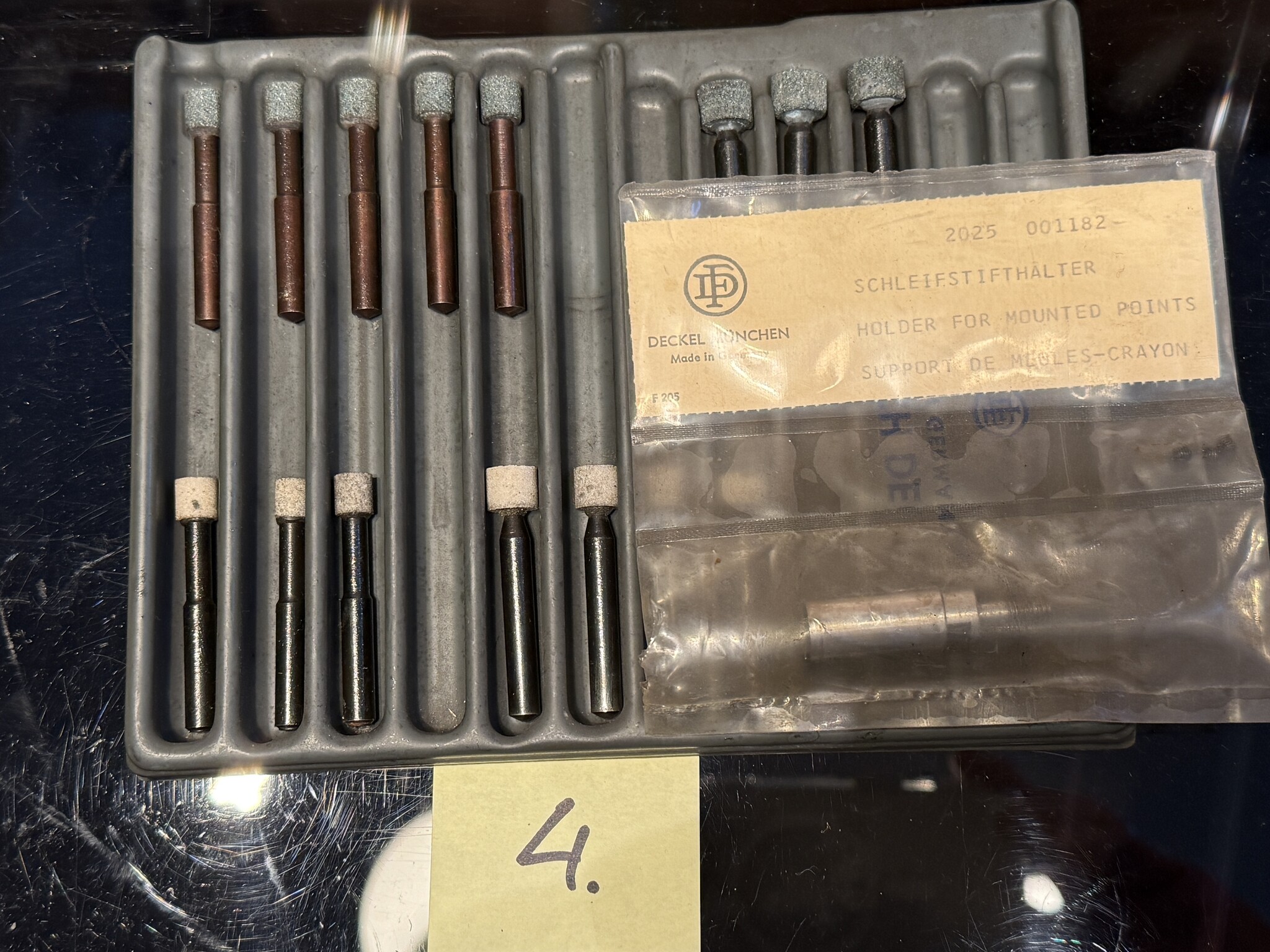

| 4 | Grindingshaft holder ø6mm | 20 25 1182 | Bore takes ø6mm shaft | outside and inside | €150 |

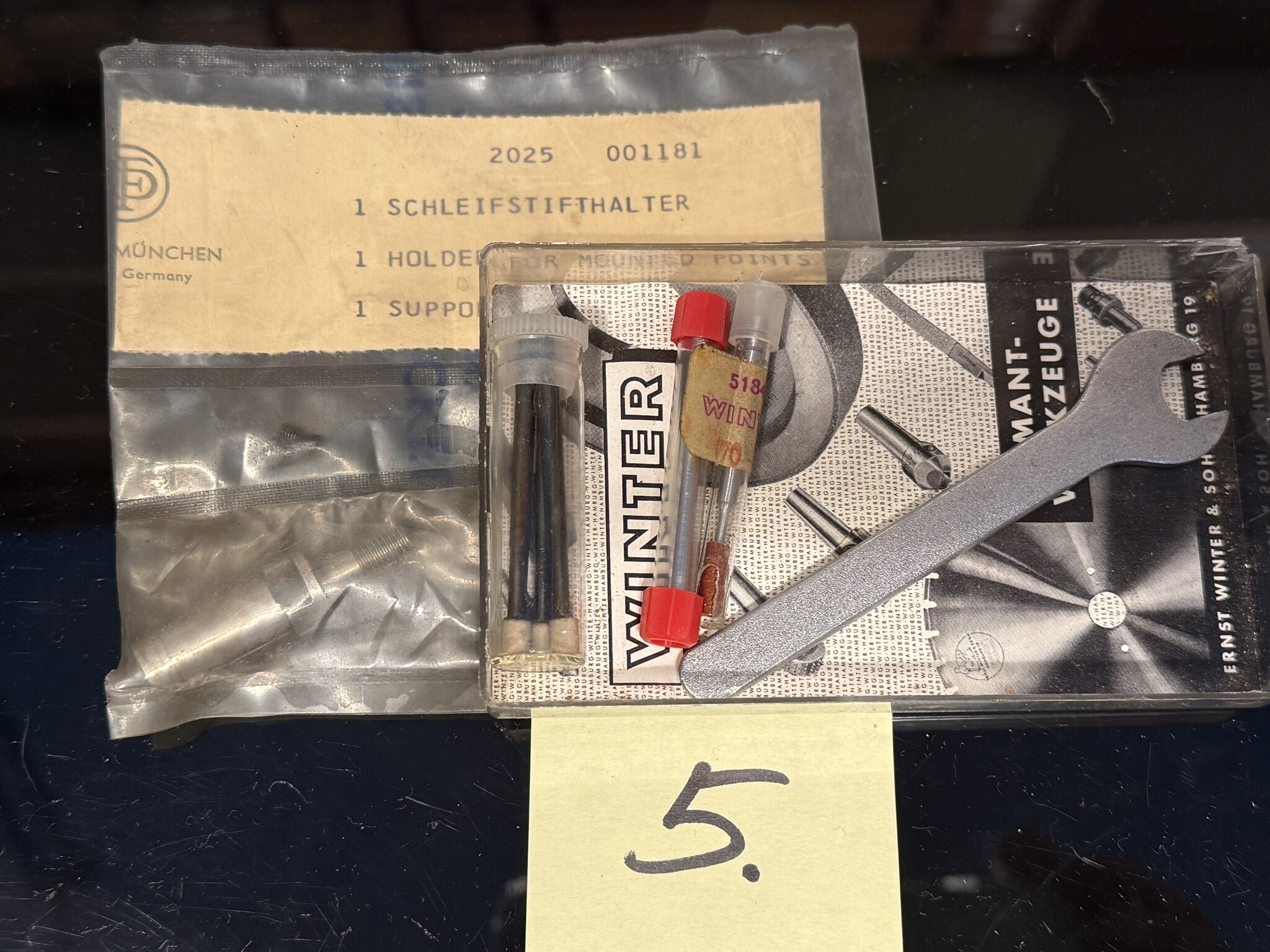

| 5 | Grindingshaft holder ø3mm | 20 25 1181 | Bore takes ø3mm shaft | outside and inside | €150 |

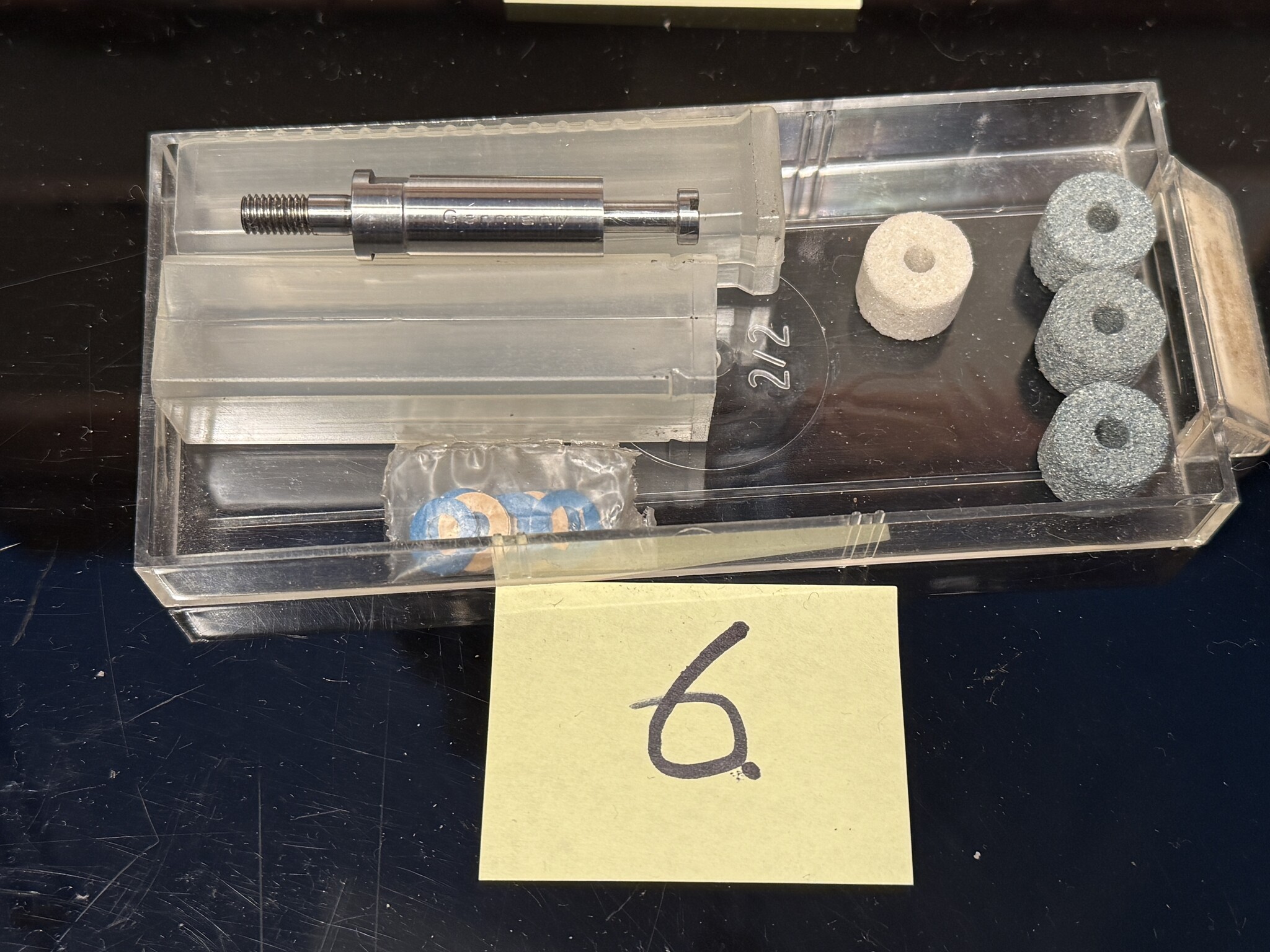

| 6 | Grindingstone holder ø4mm | 20 25 1348 | Shaft takes ø4mm stone M4 | inside (right-thread) | €150 |

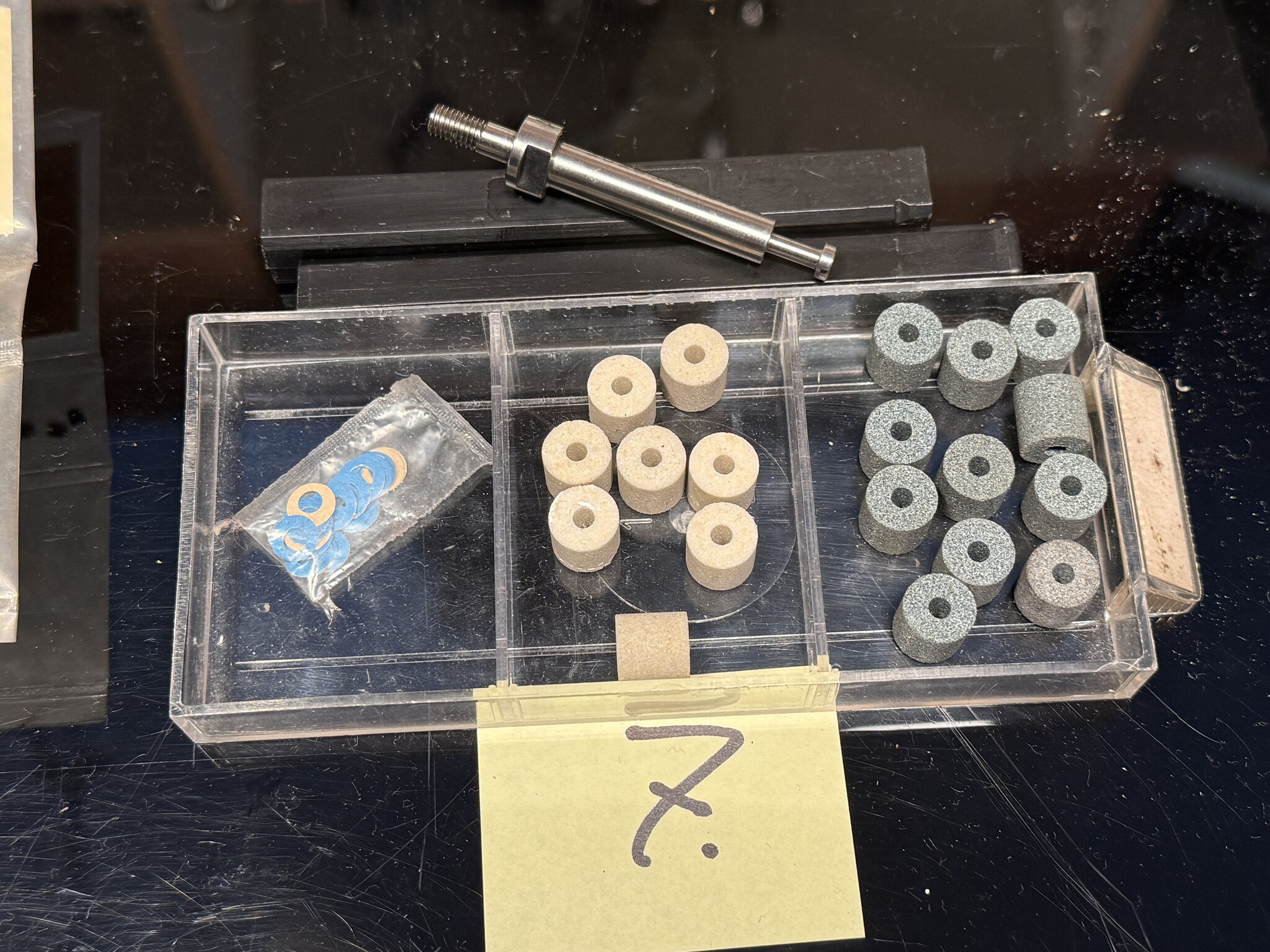

| 7 | Grindingstone holder ø3mm | 20 25 1343 | Shaft takes ø3mm stone M3 | outside (left-thread) | sold |

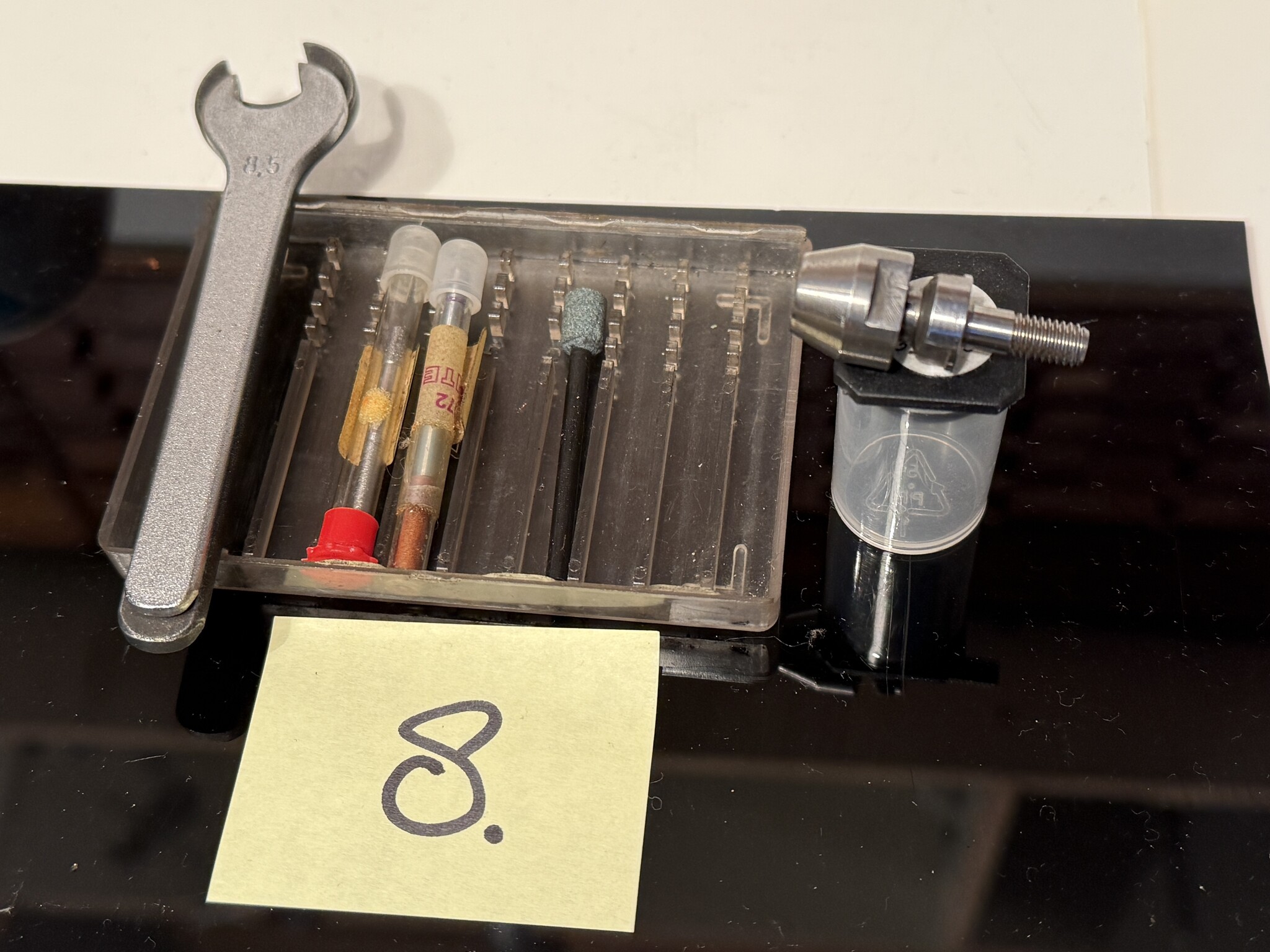

| 8 | Grindingshaft holder ø3mm | 20 25 1423? | Bore takes ø3mm shaft | outside and inside | €150 |

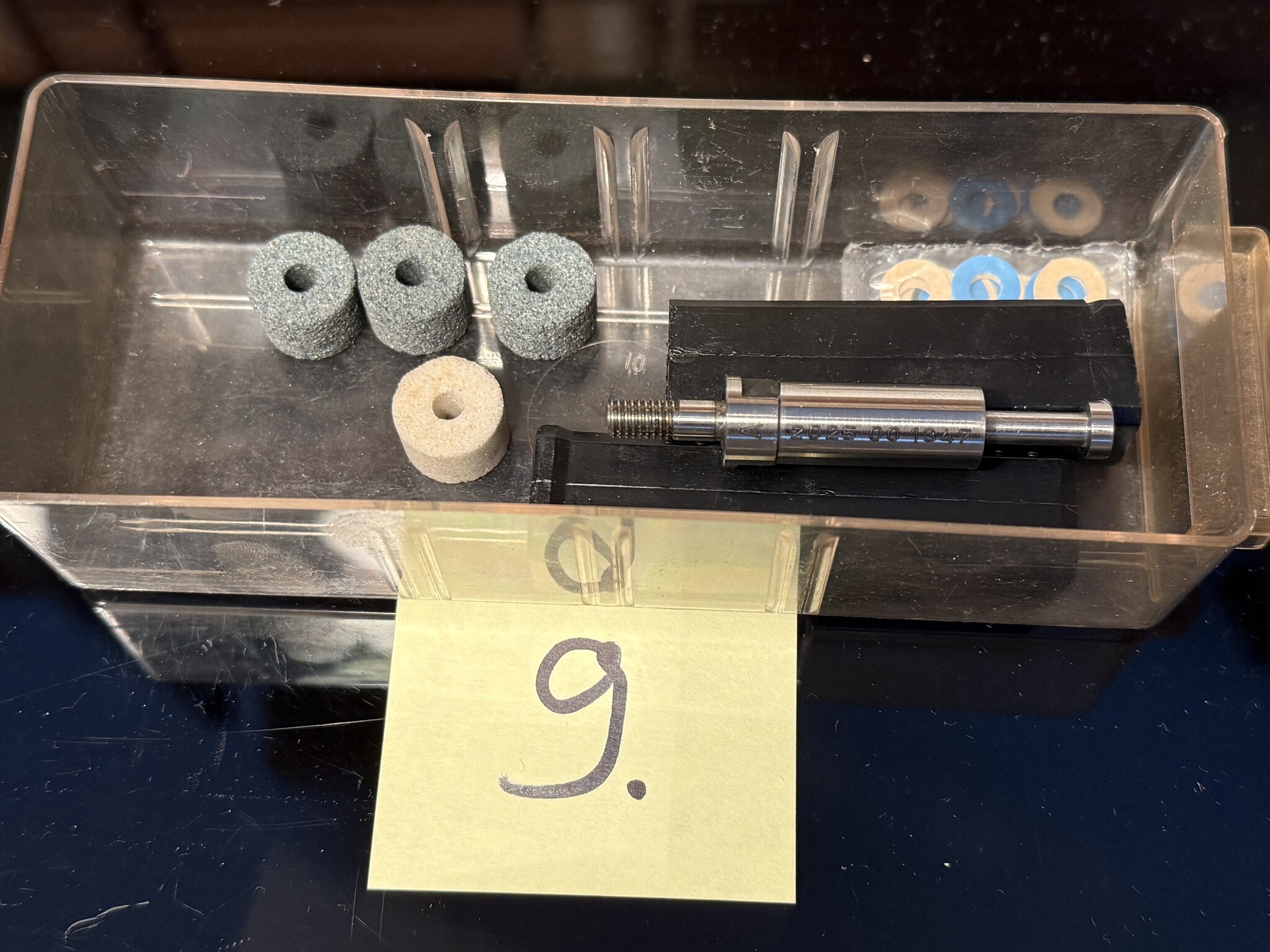

| 9 | Grindingstone holder ø4mm | 20 25 1347 | Shaft takes ø4mm stone M4 | outside (left-thread) | €150 |

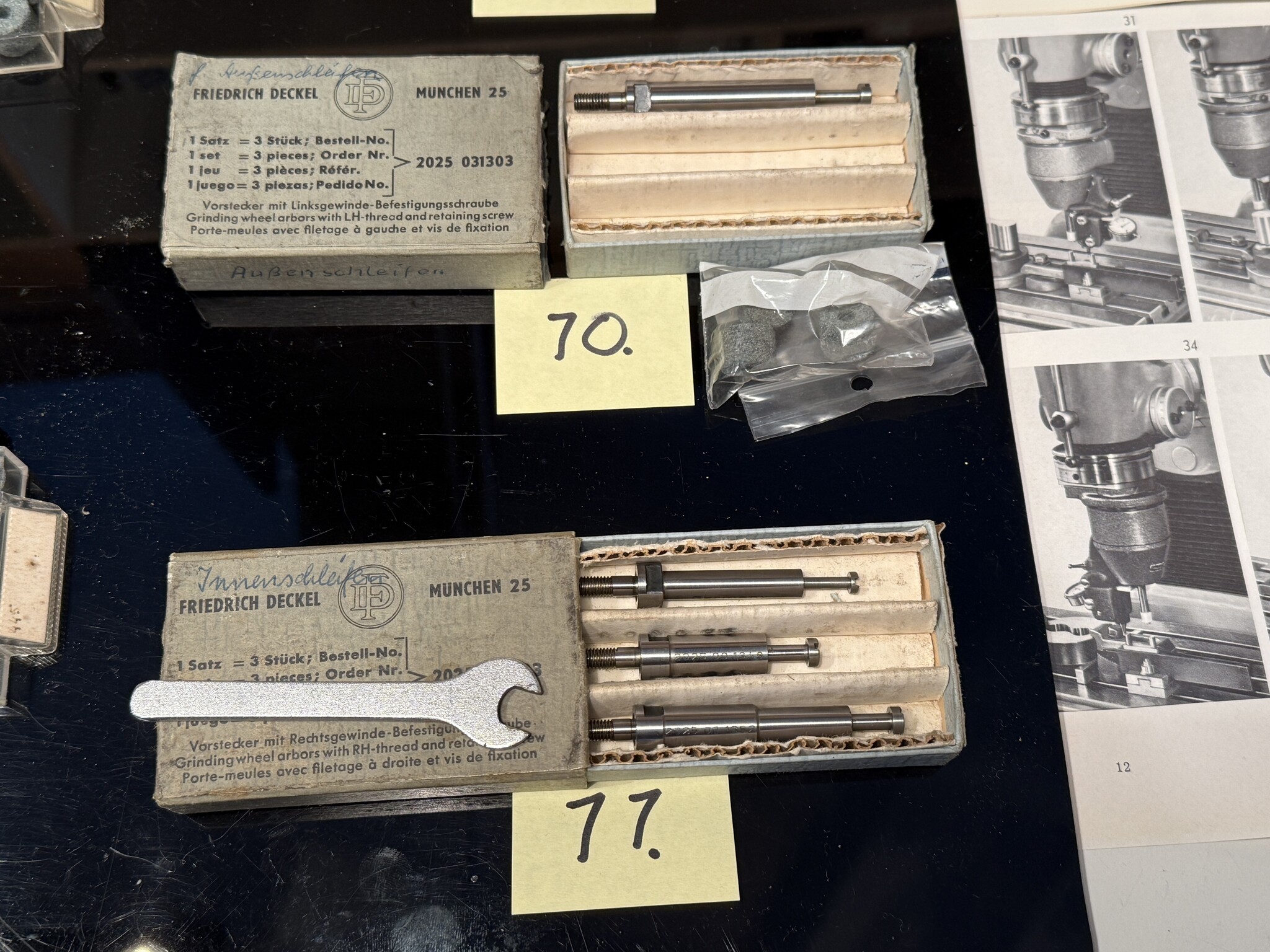

| 10 | Grindingstone holder ø4mm | 20 25 1349 | Shaft takes ø4mm stone M4 | outside (left-thread) | €150 |
| 11 | Grindingstone holder 3 pieces | 20 25 1344 | Shaft takes ø3mm stone M4 | inside (right-thread) | |
| 20 25 1348 | Shaft takes ø4mm stone M4 | inside (right-thread) | |||
| 20 25 1352 | Shaft takes ø4mm stone M4 | inside (right-thread) | €450 |
